2022 Timbersled ARO 3 Pro White

Timbersled’s 2022 snowcheck model. Available in PRO suspension. This kit is currently on a Husky 501. Email or call to ask about buying it as a complete or purchasing the kit separately.

Description

Timbersled’s 2022 snowcheck model. Available in PRO suspension. This kit is currently on a Husky 501. Email or call to ask about buying it as a complete or purchasing the kit separately.

Additional information

Drive Chain

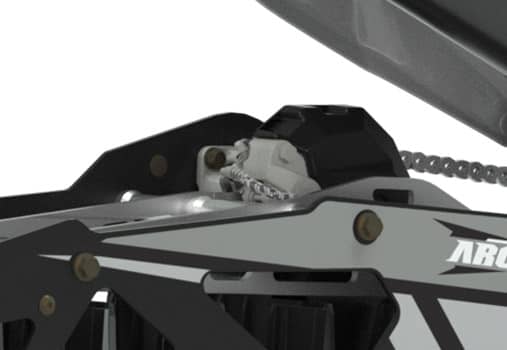

Brakes: Timbersled Pre-bleed
Chains: 520 X-Ring

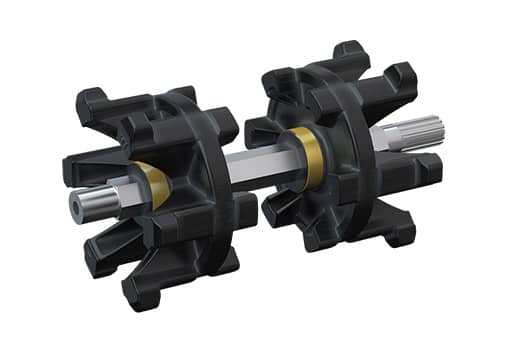

Driver: 3.0 pitch 6 tooth anti ratchet
Gearing: (Jackshaft: Upper: Lower)17:17:18
Jackshaft / Driveshaft: Lightweight
Sprockets\ Super Light Weight HD
Track Dimensions (W x L x Lug inches): 11.5 x 129 x 3.0
Track Name / Feature: Traverse 3"

Dimensions

Estimated Dry Weight – Front (lbs/kg): 16.0 / 7.25
Estimated Dry Weight – Rear (lbs/kg)117.0 / 53.1
Overall Length: 72 in (182.9 cm)

Rear Suspension

Hyfax: Lightweight
Rail Color: Black
Rear Travel – Fixed Install Kit (in/cm)12 / 30.5
Rear Travel – TSS Install Kit (in/cm)20 / 50.8

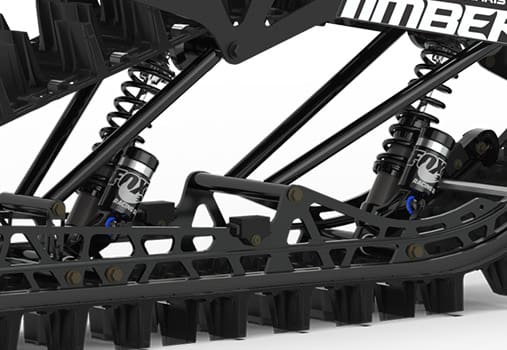

Shocks: FOX QS3 IBP
Suspension Arm Color: Black
Suspension Type: ARO

Chassis

Bumper: ARO Extreme
Chassis: ARO 3 129
Frame and Bumper Color: Black
Graphics: Black / Silver
Side Panel Color: Silver
Snow Flap: ARO Snowflap

Front Suspension

Ski Hoop Color: White
Ski Type: Traverse®
Spindle: Lightweight
Spindle Color: White

Features

Color / Graphics: White
Fuel Storage: Accessory (2.9 gal / 11 L)
Install Kits: ARO/RIOT Fixed or TSS
Storage: Accessory
